We help local people make things! !

The Asahikawa National College of Technology Collaboration and Research Promotion Center promotes industry-academia collaboration, works jointly and strategically with local companies in an organized and strategic manner, and contributes to the development together with the community and society. As part of this initiative, we are sharing the facilities and equipment owned by our school with local companies.

In the use of the equipment, the staff of the school provides operation guidance (pay) and technical guidance (pay) is available upon request, so you can use it safely and safely.

Please feel free to contact us first.

Eligible users

• Researchers and engineers at educational and research institutions
• Researchers and engineers of companies
• Others specifically recognized by the principal

Everyone can use it for business, such as researchers and engineers at educational and research institutions and companies.

Available equipment and usage fee

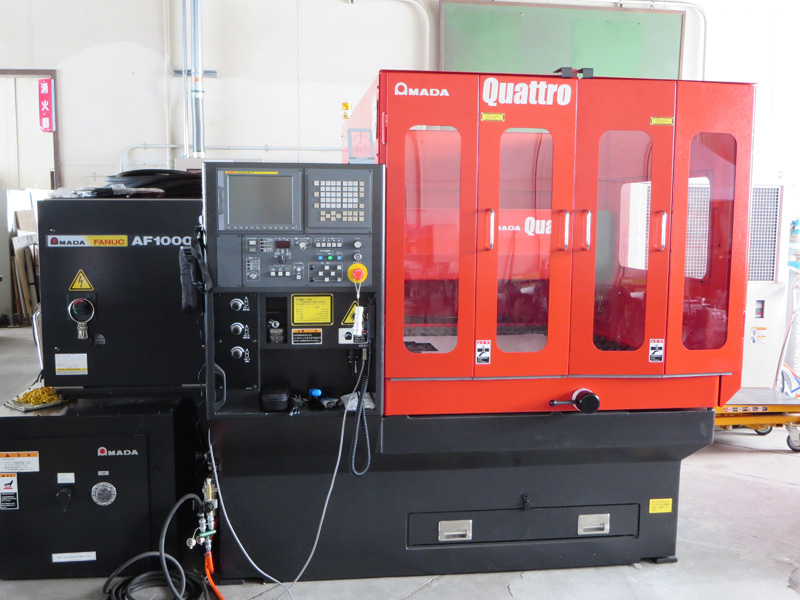

Laser processing machine

Amada Quattro AF1000E
Maximum thickness: steel plate 6 [mm]
SUS plate 4 [mm] (oxygen cutting)
Aluminum plate 1 [mm]
Maximum processing size:
1,250 × 1,250 [mm]
Rental fee: 3,300 yen/hour

Bending machine

AMADA RG-M2 3512
Maximum thickness: steel plate 6 [mm]
Maximum bending length: 1,200mm
Rental fee: 1,300 yen/hour
* Technical guidance fee will be charged separately for mold exchange.

CNC lathe

Okuma LB3000EX Ⅱ L C500
Maximum processing diameter: φ410 [mm]
Maximum processing length: ¥ 500 [mm]
Anti-crash system
(Collision prevention function) mounted
Number of tool mounting: 12
Rental fee: 2,000 yen/hour

CNC milling machine

Enshu NBV450
Movement amount (X × Y × Z):
920 × 450 × 510 [mm]
Spindle taper: BT50
Rental fee: 2,000 yen/hour

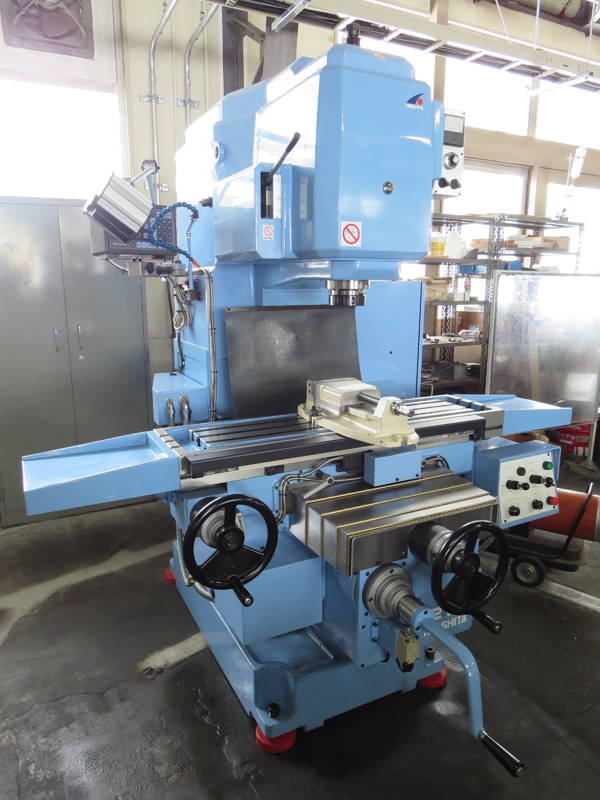

milling machine

Iwashita 2VB
Movement amount (X × Y × Z):
710 × 300 × 400 [mm]
Spindle taper: NT50
Rental fee: 900 yen/hour

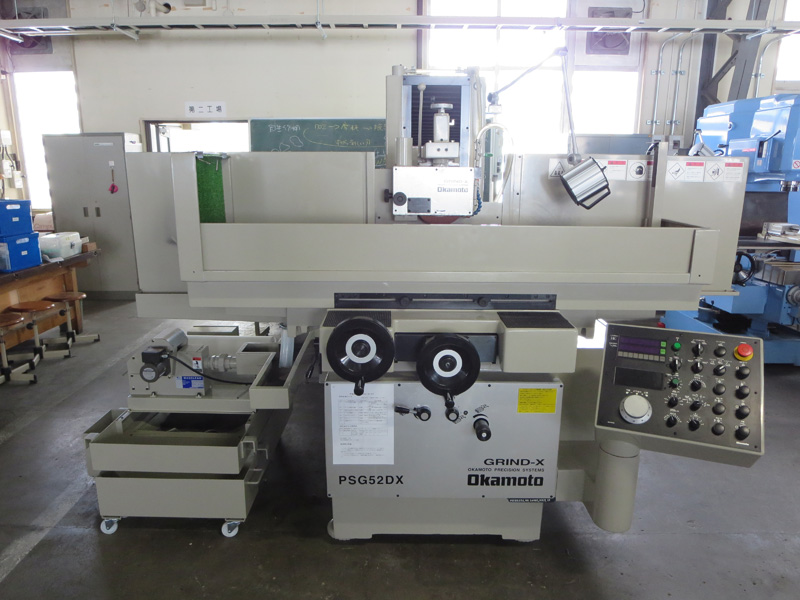

Surface grinder

Okamoto PSG52DX
Working surface: 550 × 200 [㎜]
Allowable mass: 200 [kg]
Used whetstone:
φ205 × 19 × φ50.8 [㎜]
Fee: 800 yen/hour * Technical guidance fees may be charged separately for replacement of grinding wheels.

Electric injection molding machine

FANUC ROBOSHOT S-2000i30B
Maximum injection volume: 29 [cmm²]
Screw diameter: 22 [㎜]
Rental fee: 900 yen/hour
* Technical guidance fee will be charged separately for mold exchange.

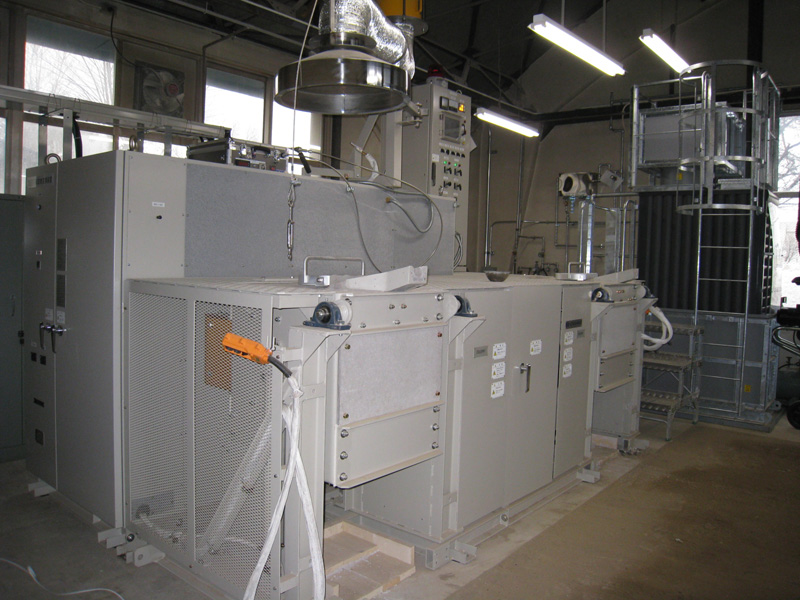

High frequency melting furnace

K1-HFF made by Kitashiba
Dissolution amount: Aluminum 20 [kg]
Cast iron 50 [kg]
Rental fee: ¥ 4,400/hour

Arc welding machine

Daihen CPDACR-200
Hitachi ADRP3 and others
* "Special education completion certificate for operations such as arc welding" is required
Usage fee: 500 yen/hour

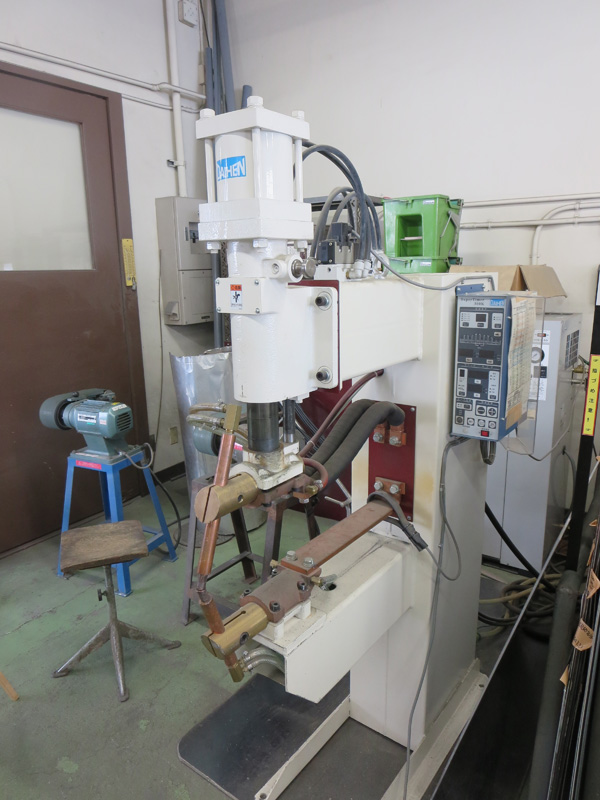

Spot welder

DAIHEN SLAJ35-601
Weldable thickness:
Steel plate 0.3-7.0 [mm]
SUS plate 0.3-4.0 [mm]
* Aluminum and copper are not allowed
Usage fee: 300 yen/hour

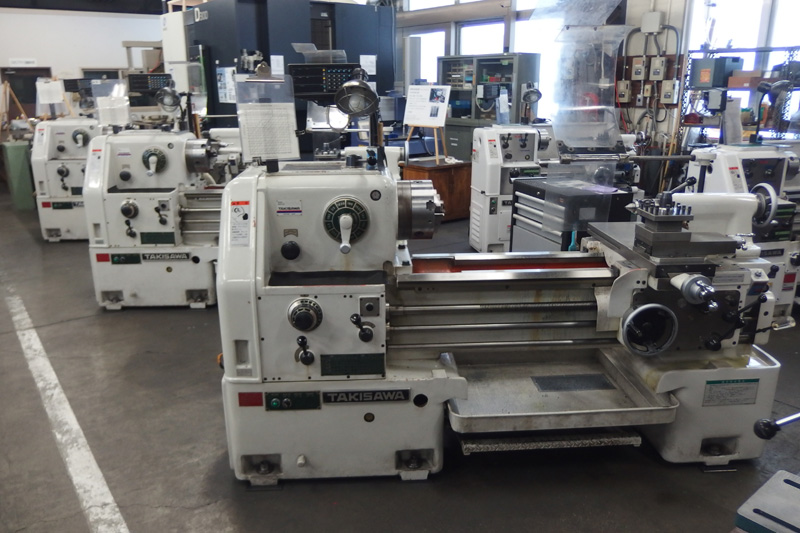

Standard lathe

Takizawa TAL-460, TSL-550
Maximum machining diameter: 460, 360 [㎜]
Maximum machining length: 800, 550 [㎜]
Rental fee: 800 yen/hour

Cylinder grinder

Shigia GPS-20
Maximum processing diameter: φ200 [㎜]
Distance between centers: 250 [㎜]
Maximum processing weight: 20 [kg]
Rental fee: 1,200 yen/hour
* Technical guidance fees may be charged separately for replacement of grinding wheels.

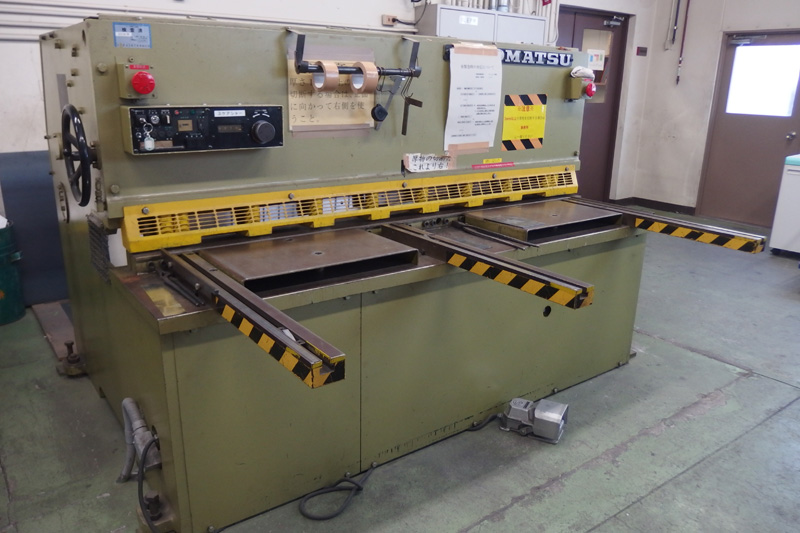

Sketcher

Komatsu SHS6-205
Maximum cutting thickness: steel plate 6 (mm)
SUS plate: 4 (mm)
Rental fee: 900 yen/hour

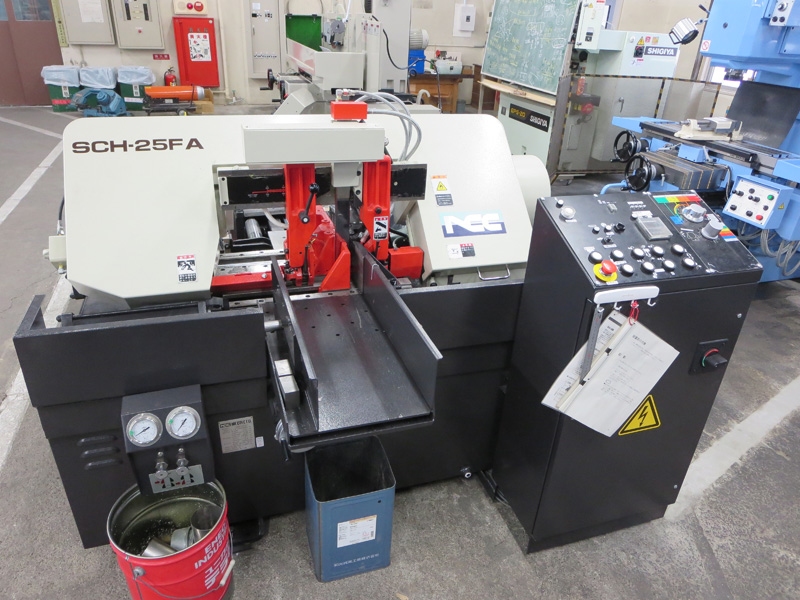

Band saw machine (full auto type)

Nicotec SCH-25FA
Cutting ability: cylindrical material φ250, square material □ W300 × H250
Saw blade dimensions: 27 × 0.9 × 3,505 (㎜)
Rental fee: 600 yen/hour

3D measuring instrument

Mitutoyo QM-Measure353
Measuring range (X × Y × Z): X300mm × Y500mm × Z300mm
Maximum measured substance amount: 30kg
Rental fee: 600 yen/hour

Surface roughness measuring instrument

Mitutoyo SJ-301
Measuring range: X12.5mm
Z350μm (-200μm ~ 150μm)
Rental fee: 200 yen/hour

Molten component analyzer

Nakayama QCR-2000
Measurement range: CE value ≦ 2.30 ～ 4.80
C% ≦ 2.50 ～ 4.00
Si% ≦ 0.05 ～ 3.50
Rental fee: 300 yen/hour

Other fees

Operation guidance fee: 1,500 yen/time @ First time use

Technical guidance fee: 3,000 yen/hour If you want technical guidance

Heating fee: ¥ 1,030/hour 時 When used in winter (November to April)

How to use

1. First, please contact us by e-mail.
2. Select the device you want to use and apply.
   Please fill out the application form for use of the specified device and submit it at least 20 days before the desired date of use.
   Before applying for, please be sure to check the rules for using the school equipment.
3. The school will issue a certificate to use the equipment.
4. I issue an invoice.
   Please make the payment at a financial institution by the deadline indicated on the invoice.
5. Use of equipment
   For those who use the equipment for the first time, we will provide instruction on the operation of the equipment. If you wish, we will also provide technical guidance. If you have any questions, please ask the person in charge of the equipment.

Use time

In principle, from 8:30 to 17:00 (excluding school holidays)

Application form

Device usage application form (Word version/PDF version)

Related rules

Asahikawa National College of Technology Equipment Usage Rules

FAQ about usage

Q Do consumables have to be prepared by the user?

A Yes. Please prepare by yourself. For necessary consumables, etc., consult the person in charge of the equipment.

Q Is there any cost other than the equipment usage fee?

A ① When using the equipment for the first time, an operation guidance fee will be charged. In addition, a technical guidance fee and a heating fee (November to April) will be charged as necessary.

Q What happens if I accidentally break the device?

A @ Asahikawa National College of Technology You will be charged for repairs in accordance with Article 10 of the Equipment Use Regulations.
